Products
BER

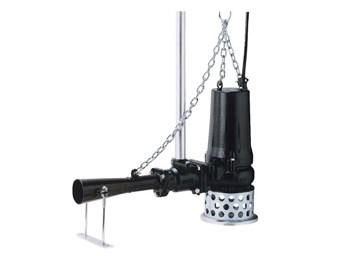

Submersible Self-Aspirating Jet Aerators
The BER-series is a submersible self-aspirating jet aerators combined a submersible pump with a venturi-jet based diffuser. The liquid flow generated by the submerged pump causes negative pressure to form around the nozzle, whereby drawing in air from above the water’s surface. With this jet injector mechanism, the aspirated air mixes with water and is ejected through the diffuser, simultaneously agitating and aerating the ponded water. The mixed air-water is ejected powerfully in one direction, which effectively agitates the water across a wide area.
- Air-inlet Bore(mm)：25 – 50
- Motor Output(kW)：0.75 – 5.5

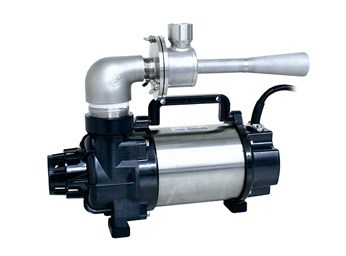

PLS With Aeration Kit
Submersible Self-Aspirating Jet Aerators
The PLS with aeration kit series is a submersible self-aspirating jet aerators combined a submersible pump with a venturi-jet based diffuser. The liquid flow generated by the submerged pump causes negative pressure to form around the nozzle, whereby drawing in air from above the water’s surface. With this jet injector mechanism, the aspirated air mixes with water and is ejected through the diffuser, simultaneously agitating and aerating the ponded water. The mixed air-water is ejected powerfully in one direction, which effectively agitates the water across a wide area. Because the PLS-series uses food-grade liquid paraffin for lubricating oil, this jet aerator is safe and fish-friendly if used for water circulation and aquarium, aquaculture/fish farms.
- Air-inlet Bore(mm)：25
- Motor Output(kW)：0.15 – 0.75
