Submersible Mixers

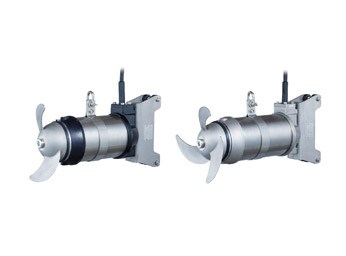

The MR-series is a submersible mixer designed to generate a powerful jet of water using a propeller that is specially shaped for high efficiency and directly coupled to a submersible motor. It can be used for either aerobic/aeration treatment that mixes water and air, or anaerobic treatment that does not mix air into the water. The MR-series is available in wide variations, including cast iron or cast stainless steel construction, as well as configured without a guide ring that enhances the mixing effect or with it, which increases the flow regulating effect. When used in combination with lifting equipment (optional), the mixer can be easily inspected and serviced without entering the tank.

• Motor Output(kW)：0.25 – 7.5
• Flow Rate(m3/min)：1.4 – 42

Submersible Mixers (Low Water Level Type)

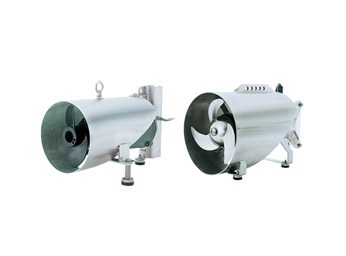

The MRL-series is a low water level type of submersible mixer designed to operate in water as shallow as 500 mm. It is fitted with a guide ring that extends to the rear of the mixer to prevent whirlpools from being sucked in, thus maintaining anaerobic mixing even in shallow water. This makes it particularly effective for mixing water in flow regulating tanks prior to anaerobic treatment. The MRL-series is available in either cast iron or cast stainless steel construction and, when used in combination with lifting equipment (optional), the mixer can be easily inspected and serviced without entering the tank.

• Motor Output(kW)：0.25 – 2.8
• Flow Rate(m3/min)：1.32 – 11.3
